Zebra · DS3608 / DS3678

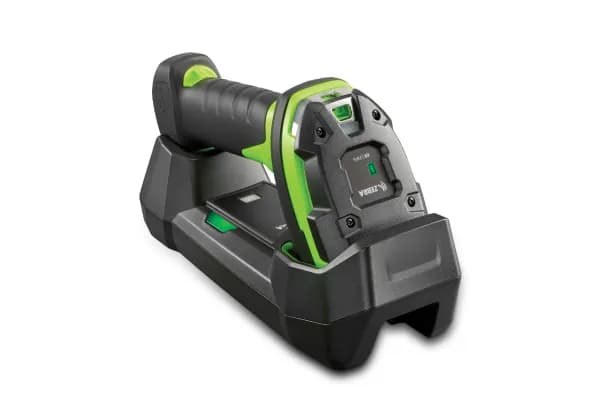

DS3600 Series Ultra-Rugged Scanner
Zebra DS3600 Series ultra-rugged digital scanners are built for the harshest manufacturing and warehouse environments. With advanced 1D/2D scanning technology, they quickly and accurately read barcodes that are damaged, dirty, far away, or covered by shrinkwrap, helping you meet tight deadlines. Available in corded and cordless models with remote management and real-time analytics.
- Dual IP65/IP68 sealing ratings, dust-tight and waterproof for the harshest industrial environments
- Withstands multiple 10 ft / 3.0 m drops to concrete and 7,500 tumbles at 3.3 ft / 1.0 m
- Advanced 1D/2D scan engine reads damaged, dirty, and shrinkwrapped barcodes with Digimarc digital watermark support
- Industrial Ethernet support (EtherNet/IP, Profinet, Modbus TCP) and Bluetooth 4.0, over 100,000 scans per charge
series
Scan Type
3 m (10 ft) drops to concrete + 7500 1 m tumbles
Drop Spec
IP65 + IP68 double sealed
IP Rating
Various distances from SR to XR depending on variant
Working Range
Full Specifications
Zebra · DS3608 / DS3678Decode
4 items- Scan Type
- 2D area array imager — DS3608/3678 series
- Image Sensor
- 1280 × 960 pixels (HP/HD/ER/XR depending on variant)
- Field of View
- Horizontal 31° / Vertical 23°
- Supported Symbologies
- 1D (Code 39/128/UPC/EAN/Codabar/GS1 DataBar) + 2D (PDF417/DataMatrix/QR/Aztec/Composite) + OCR-A/B + MICR-E13B
Working Range
1 items- Working Range
- SR/HP/HD/ER/XR multi-variant series ranging from near field DPM to 16.8 m
Durability
3 items- IP Rating
- IP65 + IP68 double sealing (water immersion protection)
- Drop Spec
- 3 m (10 ft) dropped to concrete, tested multiple times
- Operating Temperature
- -20°C to 50°C (-4°F 至 122°F)
Interface & Software
3 items- Host Interface
- USB / RS-232 / Keyboard Wedge
- Industrial Ethernet
- EtherNet/IP, Profinet, Modbus TCP (via cradle)
- Connectivity
- DS3608: Wired USB; DS3678: Bluetooth 4.0 LE Class 1, 90 m (300 ft) line of sight
General
3 items- Weight
- Wireless model 411 g (14.5 oz); corded model is lighter
- Dimensions
- Wireless 7.3 × 3.0 × 5.6 in (185 × 76 × 142 mm)
- Battery
- DS3678 cordless
