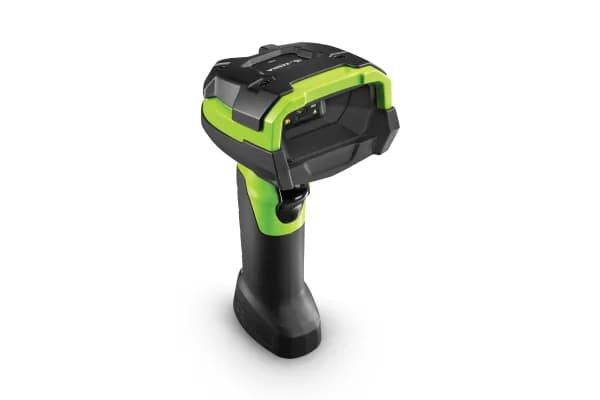

Zebra DS3600-ER Extended Range Ultra-Rugged Scanner
Extended range DS3600 scanning from 7.6cm to 21.4m, ideal for high-rack warehouses and large logistics centers.
- 7.6cm to 21.4m extended range
- IP65/IP68 dual sealing
- Ideal for high-rack warehouse operations
Extended Range
Scan Type
3 m (10 ft) drops to concrete + 7500 1 m tumbles
Drop Spec
IP65 + IP68 double sealed
IP Rating
20 mil C128: 8 in–7 ft; 100 mil C39: 1–35 ft
Working Range
Full Specifications
Zebra · DS3600-ERDecode
4 items- Scan Type
- 2D area imager — DS3608/3678 Extended Range
- Image Sensor
- 1280 × 960 pixels (HP/HD/ER/XR depending on variant)
- Field of View
- Horizontal 31° / Vertical 23°
- Supported Symbologies
- 1D (Code 39/128/UPC/EAN/Codabar/GS1 DataBar) + 2D (PDF417/DataMatrix/QR/Aztec/Composite) + OCR-A/B + MICR-E13B
Working Range
1 items- Working Range
- ER extension range: 20 mil C128: 20 cm–2.1 m; 100 mil C39: 30 cm–10.7 m
Durability
3 items- IP Rating
- IP65 + IP68 double sealing (water immersion protection)
- Drop Spec
- 3 m (10 ft) dropped to concrete, tested multiple times
- Operating Temperature
- -20°C to 50°C (-4°F 至 122°F)
Interface & Software
3 items- Host Interface
- USB / RS-232 / Keyboard Wedge
- Industrial Ethernet
- EtherNet/IP, Profinet, Modbus TCP (via cradle)
- Connectivity
- DS3608: Wired USB; DS3678: Bluetooth 4.0 LE Class 1, 90 m (300 ft) line of sight
General
3 items- Weight
- Wireless model 411 g (14.5 oz); corded model is lighter
- Dimensions
- Wireless 7.3 × 3.0 × 5.6 in (185 × 76 × 142 mm)
- Battery
- DS3678 cordless
