Honeywell · Granit 1991iSR

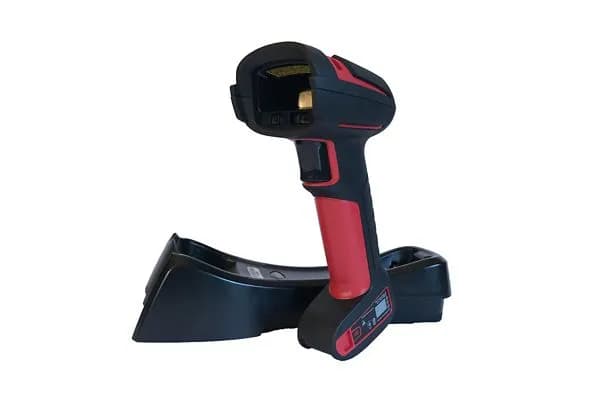

Honeywell Granit 1991iSR Wireless Standard Range Industrial Scanner
Wireless standard range industrial scanner, ultra-rugged design with Bluetooth freedom for harsh environments.
- Bluetooth wireless connectivity
- Standard range scanning
- IP65 industrial protection
IP67 / IP65
IP Rating
3 m MIL-STD-810G / 7,000 tumbles
Drop Spec
Bluetooth 4.2 Class 1 (100 m)
Connectivity
2D Area Imager (Standard Range
Scan Type
Full Specifications
Honeywell · Granit 1991iSRDecode
5 items- Scan Type
- Area Imager (Standard Range
- Image Sensor
- 1280 x 800 pixel array
- Motion Tolerance
- Max 4,500 mm/s (177 in/s) (Up to 4,500 mm/s (177 in/s))
- Resolution
- 1D Code 39 3 mil / 2D Data Matrix 6 mil
- Supported Symbologies
- Standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, OCR
Working Range
3 items- Field of View
- Horizontal 40° / Vertical 30°
- Depth of Field (13 mil UPC)
- 0 – 504 mm (0 – 504 mm (0 – 19.8 in))
- Depth of Field (20 mil Code 39)
- 0 – 837 mm (0 – 837 mm (0 – 33 in))
Durability
5 items- IP Rating
- IP67 and IP65 (scanner / base
- Drop Spec
- 3 m (10 ft) MIL-STD-810G; 50x drops at 2 m (3 m (10 ft) MIL-STD-810G; 50x drops at 2 m)
- Tumble
- 7,000 tumbles at 1 m (3.3 ft
- Operating Temperature
- -20°C to 50°C (-20°C to 50°C (-4°F to 122°F))
- Storage Temperature
- -40°C to 70°C (-40°C to 70°C (-40°F to 158°F))
Interface & Software
2 items- Connectivity
- 2.4 GHz Bluetooth 4.2 Class 1; 100 m (330 ft
- Host Interface
- USB, Keyboard Wedge, RS-232 TTL (via base
General
4 items- Dimensions (Scanner)
- 192 x 76 x 100 mm (192 x 76 x 100 mm (7.6 x 3.0 x 3.9 in))
- Weight
- 405 g (14.3 oz) cordless
- Battery
- 2,450 mAh Li-ion minimum; up to 50,000 scans per charge
- Battery Life
- 14 hours (1 scan per second
