Honeywell · Xenon Ultra 1962g

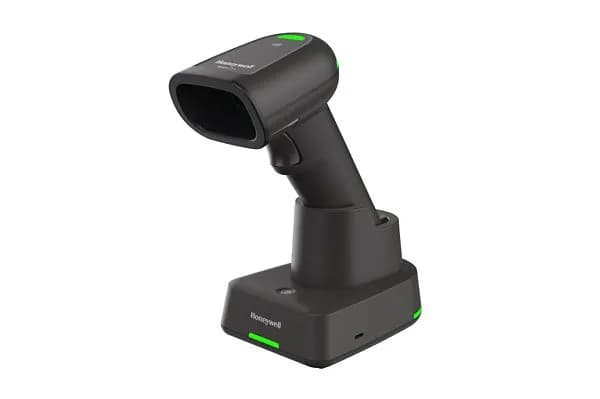

Honeywell Xenon Ultra 1962g Wireless Handheld Scanner
Premium wireless 2D imager with battery-free supercapacitor technology, 4-minute fast charge, IP52 rated, survives 3m drops.
- Battery-free supercapacitor, 4-min fast charge
- 3m drop / 2,000 tumble tested
- Disinfectant-ready housing
2D 面陣影像器 (2D Area Imager)
Scan Type
藍牙無線 (Bluetooth Cordless)
Connectivity
鋰電池或超級電容 (Li-ion or Battery-Free Supercapacitor)
Power Options
1.8 m 水泥地 50 次 (50x drops to 1.8 m concrete)
Drop Spec
Full Specifications
Honeywell · Xenon Ultra 1962gDecode
4 items- Scan Type
- 2D 面陣影像器 (2D Area Imager)
- Image Sensor
- 1280 x 1080 像素陣列 (1280 x 1080 pixel array)
- Motion Tolerance
- 4 公尺/秒 (SR/HD) (4 m/s (SR/HD))
- Supported Symbologies
- 標準 1D、PDF、2D、郵政、Digimarc、DOT Code、OCR (Standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, OCR)
Working Range
3 items- Field of View
- 水平 42° / 垂直 36° (Horizontal 42° / Vertical 36°)
- Depth of Field (13 mil UPC, SR)
- 0 – 654 mm (0 – 654 mm (0 – 25.75 in))
- Depth of Field (5 mil Code 39, SR)
- 23 – 311 mm (23 – 311 mm (0.91 – 12.24 in))
Durability
5 items- IP Rating
- IP52 (掃描器) / IP41 (基座) (IP52 (scanner) / IP41 (CCB))
- Drop Spec
- 1.8 m (6 ft) 水泥地 50 次 (50 drops at 1.8 m (6 ft) to concrete)
- Tumble
- 0.5 m 翻滾 2,000 次 (2,000 tumbles at 0.5 m (1.6 ft))
- Operating Temperature
- 0°C 至 50°C (0°C to 50°C (32°F to 122°F))
- Storage Temperature
- -40°C 至 70°C (-40°C to 70°C (-40°F to 158°F))
Interface & Software
2 items- Connectivity
- Bluetooth 4.2 無線 (Bluetooth 4.2 cordless)
- Host Interface
- USB、RS-232、鍵盤楔入 (透過基座) (USB, RS-232, Keyboard Wedge (via base))
General
3 items- Dimensions (Scanner)
- 108.2 x 70.4 x 160.2 mm
- Weight
- 鋰電池版 247 g / 電池免版 218 g (Li-ion 247 g / Battery-Free 218 g)
- Battery
- 3,300 mAh 鋰電池 或 超級電容 (450+ 次掃描) (3,300 mAh Li-ion or supercapacitor (450+ scans))
