Zebra · ZT610 RFID

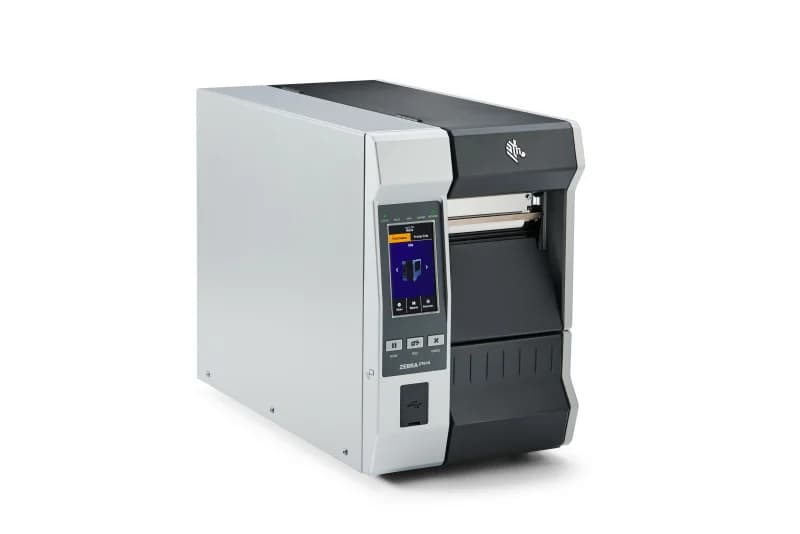

Zebra ZT610 RFID Industrial Printer
ZT610 industrial printer with built-in UHF RFID encoder for simultaneous print and encode. Adaptive Encoding technology auto-optimizes RFID calibration, greatly simplifying smart label deployment.
- Built-in UHF EPC Gen 2 RFID encoder
- Adaptive Encoding auto-calibration technology
- All-metal chassis + 4.3" color touchscreen
EPC Gen 2 V2 / ISO 18000-63
RFID Protocol
203 / 300 / 600 dpi
Resolution
14 ips
Print Speed
104 mm (4.09")
Print Width
Full Specifications
Zebra · ZT610 RFIDPrint Specifications
5 items- Print Method
- Direct Thermal / Thermal Transfer
- Resolution
- 8 dots/mm
- Print Speed
- 14 ips / 12 ips / 6 ips
- Print Width
- 104 mm (4.09")
- Max Print Length
- 203 dpi: 3,988 mm (157"); 300 dpi: 1,854 mm (73")
Hardware
4 items- Memory
- 2 GB Flash / 1 GB RAM
- Sensors
- Transmissive and reflective media sensors, ribbon sensors, print head open/temperature sensors, RFID antenna sensors
- RFID Protocol
- EPC Gen 2 V2 / ISO/IEC 18000-63 (UHF Gen2)
- RFID Frequency
- UHF 860–960 MHz (global band)
Media Specifications
4 items- Media Types
- Continuous, punched, indented, black mark, RFID tags and tags
- Media Width
- 20–114 mm (0.79–4.5")
- Media Roll OD
- Max 203 mm (8.0")
- Media Core
- 76 mm (3.0") inner diameter
Ribbon Specifications
2 items- Ribbon Length
- Maximum 450 m (1,476')
- Ribbon Width
- 51–110 mm (2.0–4.33")
Interface & Software
2 items- Interface
- USB 2.0, RS-232 Serial, 10/100 Ethernet, USB Host x2, Bluetooth 4.0 standard; optional Wi-Fi 6 (802.11ax)/BT 5.3 or Wi-Fi 5 (802.11ac)/BT 4.2
- Programming Language
- ZPL、ZPL II、XML、EPL2、ZBI 2.0、Virtual Devices
General
4 items- Display
- 4.3" color touch screen
- Construction
- Full metal die-cast body
- Certification
- ENERGY STAR
- Weight
- 22.7 kg (50 lb)
