Zebra · ZD421 / ZD411

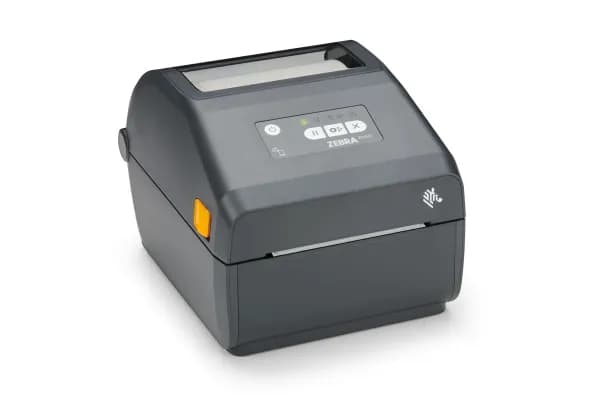

ZD400 Series Desktop Printer
The ZD400 Series consists of advanced 4-inch and 2-inch desktop printers delivering quality performance for years of operation. With Zebra's exclusive DNA software suite for easy setup and remote management, plus field-upgradeable connectivity and media handling to meet evolving business needs.
- Easy setup and management: Zebra DNA software suite enables straightforward installation, operation, management and remote maintenance
- Comprehensive features: five LED status indicators, ribbon cartridge for quick loading, healthcare disinfectant-ready options available
- Future-proof design: field-upgradeable connectivity and media handling with expandable printer architecture
- Security and reliability: built-in protection to prevent downtime and costly cyberattacks
203 / 300 dpi
Resolution
152 mm/s (6 ips)
Print Speed
ZD421: 104 mm / ZD411: 56 mm
Print Width
256 MB RAM / 512 MB Flash
Memory
Full Specifications
Zebra · ZD421 / ZD411Print Specifications
5 items- Print Method
- Direct Thermal / Thermal Transfer / Ribbon Cartridge
- Resolution
- ZD421: 203 dpi or 300 dpi; ZD411: 203 dpi or 300 dpi
- Print Speed
- 6 ips / 4 ips
- Print Width
- 203 dpi / 300 dpi
- Max Print Length
- 991 mm (39")
Hardware
2 items- Memory
- 256 MB SDRAM / 512 MB Flash
- Sensors
- Multi-point transmissive + full-width reflective + print head opening sensor
Media Specifications
4 items- Media Types
- Z-Band 4000
- Media Width
- ZD421t: 15 – 112 mm; ZD421c: 15 – 118 mm; ZD421d: 15 – 108 mm; ZD411 2" model: 10 – 60 mm
- Media Roll OD
- Max 127 mm (5")
- Media Core
- Standard 12.7 / 25 mm; optional adapter 38.1 / 50.8 / 76 mm
Ribbon Specifications
2 items- Ribbon Length
- Roll: 300 m or 74 m; Cartridge: 74 m
- Ribbon Width
- Roll: 33.8 – 109.2 mm (ZD421 4")；Cartridge: 109.2 mm
Interface & Software
2 items- Interface
- Standard USB 2.0 + USB Host + Bluetooth LE; optional 10/100 Ethernet + RS-232 + Wi-Fi 802.11ac + Bluetooth 4.1
- Programming Language
- ZPL II / EPL2 / Link-OS
General
4 items- Certification
- ENERGY STAR, meets Energy Efficiency Level VI; Healthcare models include IEC 60601-1 certified power supply
- Power
- External transformer 100-240 VAC 50-60 Hz, output 24 VDC 2.5A
- Weight
- ZD421 thermal transfer: 2.05 kg; thermal: 1.35 kg; ribbon cartridge: 2.3 kg
- Dimensions
- ZD421 Thermal transfer: 267 × 202 × 189 mm; Thermal: 220.8 × 177.5 × 150.7 mm; Ribbon cartridge: 254 × 202 × 177 mm
