TSC · TDM-30

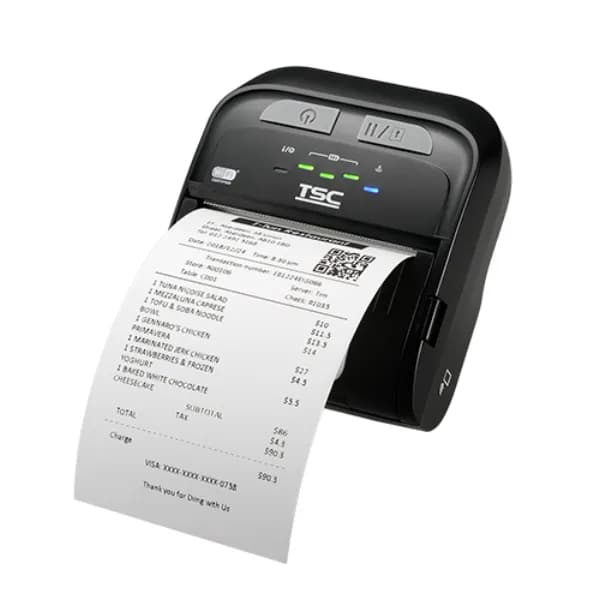

TDM Series 3-inch Mobile Printer
The TDM series features a rugged palm-sized design for simple, instant printing. Battery lasts over 42 hours of receipt printing on a single charge. Supports 20-72mm media width for logistics, warehousing, and mobile receipt printing.
- 1.8m drop tested (2.5m with protective case, MIL-STD-810G compliant)
- Over 42 hours of receipt printing per charge
- Adjustable media bracket supports 20-72mm media width
- TSC smart battery management system tracks charge status and health
203 dpi
Resolution
102 mm/s (4 ips)
Print Speed
MFi Bluetooth 5.0
Bluetooth
up to 42 hours
Battery Life
Full Specifications
TSC · TDM-30Print Specifications
5 items- Print Method
- Direct Thermal only
- Resolution
- 203 dpi (8 dots/mm)
- Print Speed
- 102 mm/s (4 ips)
- Print Width
- 72 mm (2.83")
- Max Print Length
- 2,794 mm (110")
Hardware
3 items- Memory
- 32 MB SDRAM / 16 MB Flash
- Battery
- Lithium-ion smart battery (can report power and charging cycle)
- Battery Life
- Print receipts continuously for over 42 hours on a single charge
Media Specifications
3 items- Media Types
- Receipt paper / black mark receipt paper / designated label / no backing paper
- Media Width
- Maximum 80 mm (3.15"); adjustable stand supports 20 – 70 mm (0.79" – 2.75")
- Media Roll OD
- Max 40 mm (1.57")
Interface & Software
3 items- Interface
- USB 2.0 + MFi Bluetooth 5.0 + Passive NFC; or USB 2.0 + Wi-Fi 802.11 a/b/g/n + Bluetooth 4.2 + Passive NFC
- Bluetooth
- Apple MFi Certified Bluetooth 5.0 (or Bluetooth 4.2 + Wi-Fi version)
- Programming Language
- TSPL-EZC (supports EPL2, ZPL simulation, CPCL) or ESC-POS
General
4 items- Display
- LCD + buttons or LED + buttons
- Construction
- Engineering plastic shell
- IP Rating
- IP54 (requires optional protective case); drop resistance 1.8 m (with protective case 2.5 m)
- Weight
- 375 g (including battery)
