TSC · RE310

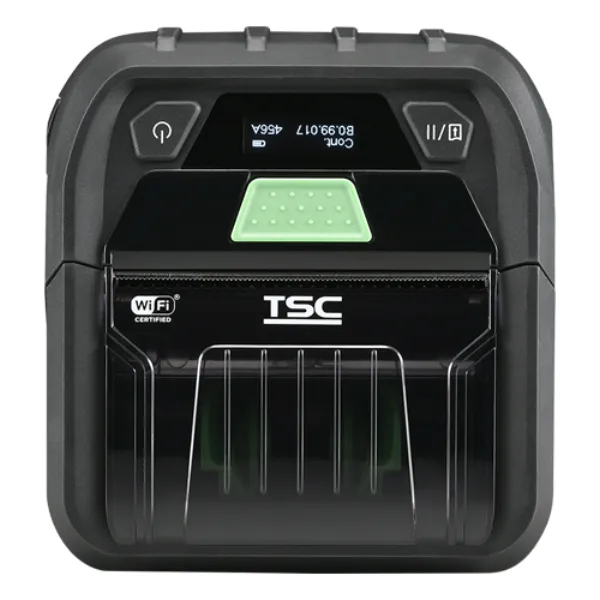

RE Series 3-inch Mobile Printer
The RE310 mobile barcode printer offers excellent value, ideal for everyday receipt and label printing. Features a rubber overmold housing, IP54 dust/water protection, and 1.5m drop resistance. Supports USB Type-C fast charging, built-in 3,080mAh battery, Bluetooth 5.3, NFC tap-to-pair, and dual-band Wi-Fi.
- Rubber overmold housing, IP54 dust/water protection, 1.5m drop resistance
- Bluetooth 5.3, NFC tap-to-pair, dual-band Wi-Fi connectivity
- USB Type-C fast charging with Power Delivery, 3,080mAh high-capacity battery
- Supports 20-80mm media width, black mark positioning, various accessory options
203 dpi
Resolution
102 mm/s (4 ips)
Print Speed
Bluetooth 5.3 + NFC
Bluetooth
about 26 hours
Battery Life
Full Specifications
TSC · RE310Print Specifications
5 items- Print Method
- Direct Thermal only
- Resolution
- 203 dpi (8 dots/mm)
- Print Speed
- 102 mm/s (4 ips)
- Print Width
- 72 mm (2.83")
- Max Print Length
- 2,794 mm (110")
Hardware
3 items- Memory
- 64 MB SDRAM / 16 MB Flash
- Battery
- 3,080 mAh lithium-ion battery
- Battery Life
- Approximately 26 hours on a single charge; supports PD 3.0 fast charging (18W+)
Media Specifications
4 items- Media Types
- Receipt paper / Black mark receipt paper (front or back) / Die cut labels
- Media Width
- 20 – 80 mm (0.79" – 3.15") (including backing paper)
- Media Roll OD
- Max 51 mm (2")
- Media Core
- 12.7 mm (0.5") standard or 19.1 mm (0.75") optional
Interface & Software
4 items- Interface
- USB-C 2.0 + Bluetooth 5.3 (standard and BLE modes) + NFC tap-to-pair; Wi-Fi models support dual-band Wi-Fi
- Bluetooth
- Bluetooth 5.3（Standard + Low Energy）
- WiFi
- Dual-band Wi-Fi (Wi-Fi models only)
- Programming Language
- TSPL-EZ (supports EPL2, ZPL simulation, CPCL) or ESC-POS
General
3 items- Display
- LCD + buttons
- Construction
- Engineering plastic + rubber covered shell
- IP Rating
- IP54; drop resistance 1.5 m, tumble resistance 1 m
