TSC · MH261T / MH361T

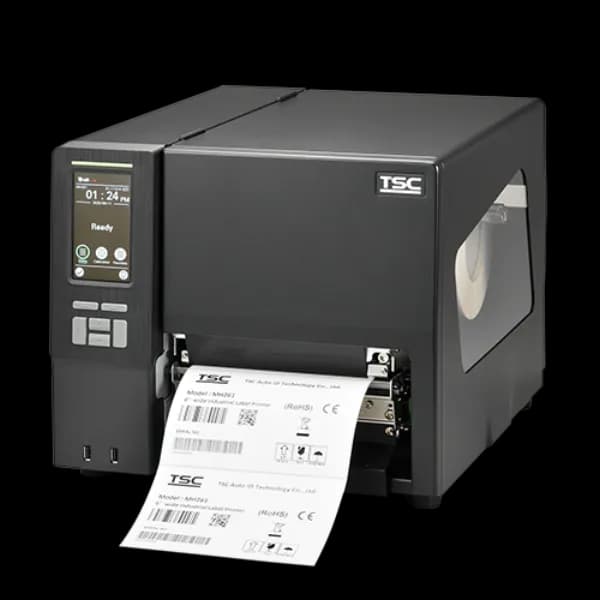

MH Series 6-Inch High-Performance Industrial Printer
The MH Series 6-inch high-performance industrial barcode label printer features superior print head technology, high-speed processor, and large memory capacity for excellent print performance. Building on the reliability of its predecessor with more advanced features, it supports various media types with fine adjustment mechanisms to ensure print quality.
- TSC Sense Care auto-detects print head health for real-time monitoring and downtime prevention
- 6.61-inch wide printing for large label applications
- Remote management via SOTI Connect and TSC Console enterprise management
- Multiple interfaces including GPIO, USB, Ethernet, with optional Wi-Fi and Bluetooth 4.2
203 / 300 dpi
Resolution
Max 305 mm/s
Print Speed
168 mm
Print Width
512 MB Flash / 256 MB SDRAM
Memory
Full Specifications
TSC · MH261T / MH361TPrint Specifications
5 items- Print Method
- Direct Thermal / Thermal Transfer
- Resolution
- MH261T: 203 dpi (8 dots/mm); MH361T: 300 dpi (12 dots/mm)
- Print Speed
- MH261T: 305 mm/s (12 ips); MH361T: 254 mm/s (10 ips)
- Print Width
- 168 mm (6.61")
- Max Print Length
- MH261T: 14,732 mm (580"); MH361T: 6,604 mm (260")
Hardware
3 items- CPU
- High performance 32-bit RISC
- Memory
- 256 MB SDRAM / 512 MB Flash (microSD expandable to 32 GB)
- Sensors
- Gap
Media Specifications
4 items- Media Types
- Continuous paper / die cut labels / black mark (bottom only) / folded / notched
- Media Width
- Max 172.7 mm (6.8")
- Media Roll OD
- Max 203.2 mm (8")
- Media Core
- 38.1 / 76.2 mm (1.5" / 3")
Ribbon Specifications
2 items- Ribbon Length
- Max 450 m
- Ribbon Width
- 50.8 – 178 mm (2" – 7")
Interface & Software
2 items- Interface
- Parallel
- Programming Language
- TSPL-EZD
General
4 items- Display
- 4.3" color touch LCD + buttons
- Construction
- Die-cast metal printing mechanism, transparent viewing window
- Dimensions
- 357 (W) × 313 (H) × 514 (D) mm
- Weight
- 17.8 kg (39.24 lbs)
