Honeywell · PM65

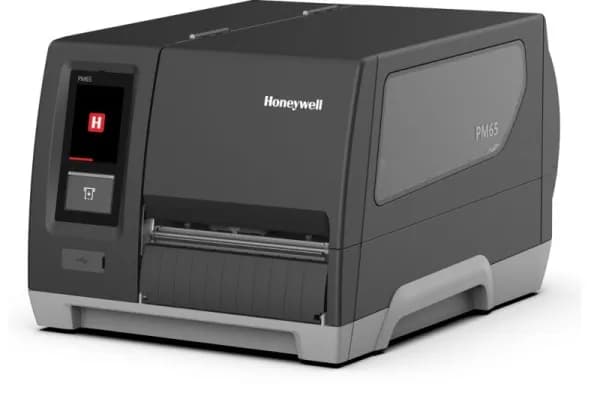

Honeywell PM65 Industrial Printer
The PM65 industrial-grade thermal printer is engineered for high-quality label and tag printing with Printer Edge technology for centralized management and real-time network monitoring. It accommodates diverse connectivity options including RFID, parallel, industrial, and applicator interfaces.
- Remote management with Print Set MC application for Android device configuration
- Rugged all-metal print mechanism with tool-free printhead and platen roller replacement
- Broad connectivity: Ethernet, USB, RS-232, parallel, Wi-Fi 6 (802.11ax)
- Supports major printer command languages: ZPL-II, DPL, IPL, Fingerprint
203 / 300 dpi
Resolution
12 ips
Print Speed
167.4 mm (6.59")
Print Width
Wi-Fi 6 + Bluetooth 5.1 + WWAN LTE
Wireless
Full Specifications
Honeywell · PM65Print Specifications
5 items- Print Method
- Direct Thermal / Thermal Transfer
- Resolution
- 8 dots/mm / 11.8 dots/mm
- Print Speed
- 203 dpi: 50 – 300 mm/s (2 – 12 ips); 300 dpi: 50 – 250 mm/s (2 – 10 ips)
- Print Width
- 203 / 300 dpi: 167.4 mm (6.59")
- Max Print Length
- 203 dpi: 4.8 m (189"); 300 dpi: 2.2 m (85")
Hardware
2 items- Memory
- FAT16/FAT32
- Sensors
- Gap / Notch / Black Mark
Media Specifications
4 items- Media Types
- Labels/tags/backing media (rolled or folded)
- Media Width
- 51 – 178 mm (2" – 7")
- Media Roll OD
- Max 213 mm (8.38")
- Media Core
- 38 – 76 mm (1.5" – 3")
Ribbon Specifications
2 items- Ribbon Length
- Maximum 450 m (1,476 ft), 80 mm (3.15") outer diameter
- Ribbon Width
- 50.8 – 172.7 mm (2" – 6.8"), shaft 25.4 mm (1")
Interface & Software
2 items- Interface
- Ethernet 10/100 + USB 2.0 Host + USB 2.0 Device + RS-232 (optional: Parallel port IEEE 1284 / Wi-Fi 802.11 a/b/g/n/ac/ax / Bluetooth 5.1 / WWAN LTE / Industrial I/O / Applicator / RFID UHF Gen 2)
- Programming Language
- Fingerprint (FP) / Direct Protocol (DP) / IPL / ZSim2 (ZPL-II) / DPL / XML (SAP AII, Oracle WMS) / PDF / C#
General
6 items- Display
- Full-color touch LCD + Icon UI (supports multiple languages including Traditional Chinese)
- Construction
- Sturdy all-metal printing mechanism + tool-free replacement of print head/roller
- Certification
- ENERGY STAR 3.0 / RoHS / CE (EN55032 Class B) / FCC Class B
- Power
- AC 100 – 240 V, 50/60 Hz; standby 9.6 W / peak 270 W
- Environment
- Operating temperature 5 – 40°C; humidity 20% – 85% (non-condensing)
- Dimensions / Weight
- 484 × 292 × 350 mm (19.1" × 11.5" × 13.8") / 13.7 kg (30.2 lbs)
