Cognex · DataMan 475V

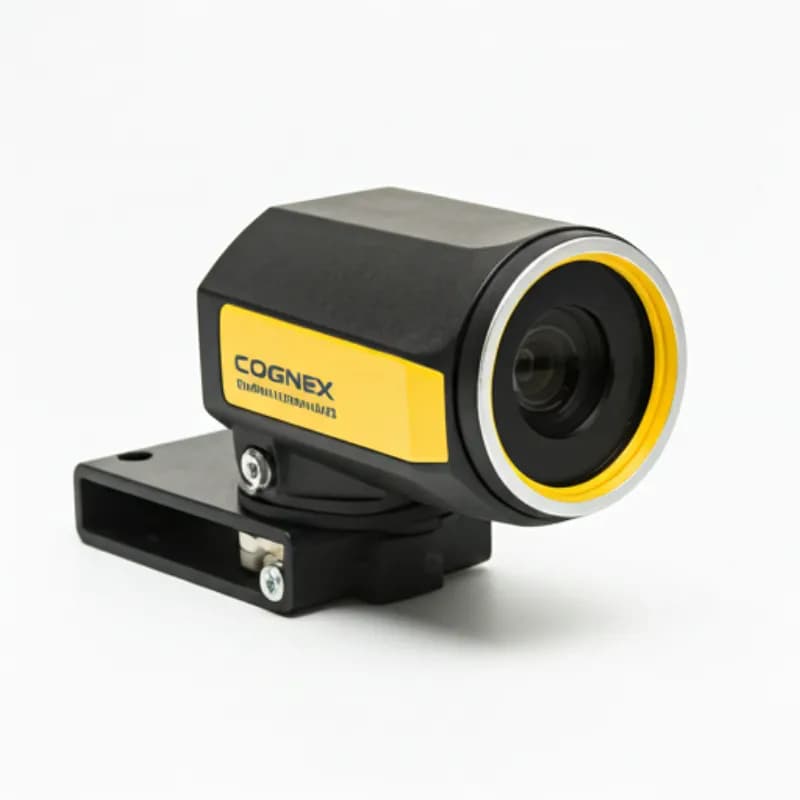

Cognex DataMan 475V Inline Verifier
Inline 100% inspection verifier — not sampling, every single barcode is scanned and graded in real-time. ISO-certified verification with high-speed imaging detects defects on fast production lines and triggers instant alerts. Ideal for pharmaceutical packaging, automotive parts, and any zero-defect industry.
- 100% inline inspection, not sampling
- ISO-certified real-time grading
- Supports 1D/2D/DPM barcode types
- Instant defect alert notification
DataMan 475V Online 1D/2D Barcode Verifier
Scan Type
High resolution CMOS, optional 5/12 MP
Resolution
ISO/IEC 15415, 15416, 29158, GS1 Datamatrix
Verification Standard
Gigabit Ethernet + Industrial I/O
Host Interface
Full Specifications
Cognex · DataMan 475VDecode
7 items- Type
- Cognex DataMan 475V — Integrated 1D/2D barcode reader and verifier for production lines
- Image Sensor
- High-resolution CMOS, optional 5 MP / 12 MP configurations
- Verification Standard
- ISO/IEC 15415 (2D), ISO/IEC 15416 (1D), ISO/IEC TR 29158 (DPM), GS1 General Specifications
- Grade Range
- Modulation/Decode/Symbol Contrast/Defects/Decodability/UEC/Print Growth
- Supported Symbologies
- All 1D + 2D + DPM (DataMatrix/QR/Aztec/PDF417/Code 39/Code 128/UPC/EAN, etc.)
- Algorithm
- Cognex HotBars II + 1DMax + 2DMax, patented PowerGrid algorithm
- Light Source
- Optional White / Red / Blue / IR LED configurations (selected by application)
Durability
2 items- IP Rating
- IP65 (complete machine including lens cover)
- Operating Temperature
- 0°C to 45°C
Interface & Software
3 items- Host Interface
- PROFINET/EtherNet/IP/TCP-IP
- Industrial Protocol
- PROFINET, EtherNet/IP, MC Protocol, Modbus TCP
- Management
- DataMan Setup Tool + In-Sight Explorer (Analysis Reporting and Calibration)
General
2 items- Construction
- Anodized aluminum alloy, industrial grade durable design
- Power
- 24 VDC ±10%, industrial PoE optional
Is this product right for you?
Tell us your industry, use case and requirements. Our expert team will recommend the best solution — not the most expensive, but the most suitable.
